UQ St Lucia Stereo Vehicular Dataset

Overview of Path
Overview of traversed path

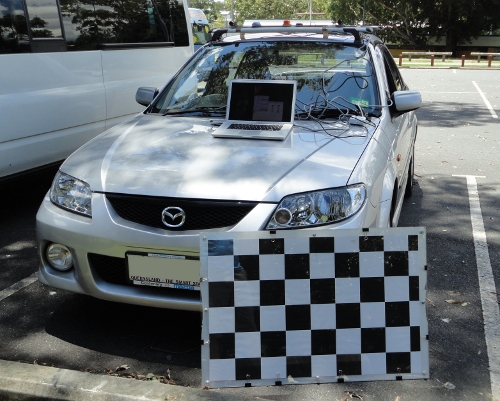

Vehicle
Vehicle used in datasets
Left Example Image
Left example image
Right Example Image
Right example image

IntroductionDatasetCalibration DetailsLog File FormatGetting Started


Introduction

The UQ St Lucia Dataset is a vision dataset gathered from a car driven in a 9.5km circuit around the University of Queensland's St Lucia campus on 15/12/10. The data consists of visual data from a calibrated stereo pair, translation and orientation information as a ground truth from an XSens Mti-g INS/GPS and additional information from a USB NMEA GPS. The dataset traverses local roads and encounters a number of varying scenarios including roadworks, speed bumps, bright scenes, dark scenes, reverse traverses, a number of loop closure events, multi-lane roads, roundabouts and speeds of up to 60 km/h.

This dataset has been released for free and public use in testing and evaluating stereo visual odometry and visual SLAM algorithms.

If you use this dataset in your own work we request that you cite our paper: Unaided Stereo Vision Based Pose Estimation (Bib, Ris, XML [EndNote]) in your bibliography.

	@inproceedings{Warren2010,
	address = {Brisbane},
	author = {Warren, Michael and McKinnon, D. and He, H. and Upcroft, Ben},
	booktitle = {Australasian Conference on Robotics and Automation},
	editor = {Wyeth, Gordon and Upcroft, Ben},
	keywords = {Stereo vision,computer vision,dataset,field robotics,visual odometry},
	mendeley-tags = {computer vision,field robotics,visual odometry},
	publisher = {Australian Robotics and Automation Association},
	title = {{Unaided stereo vision based pose estimation}},
	url = {http://eprints.qut.edu.au/39881/},
	year = {2010}
	}

Need some help? Follow the Getting Started guide below!


Dataset

Links are provided to the images and other logs below. The full set of images is available as separated ~1.95GB RAR files, but because of its size a smaller subset of 100 images in both raw and debayered/undistorted formats is also available for evaluation. MD5 Checksums are provided on large files to ensure integrity of downloaded data.

Dataset Title

Master Log Data

Stereo Image Data

GPS and IMU Log Data

Full UQ St Lucia Dataset

Full Dataset

    (19/07/2020) Unfortunately a number of the following files are temporarily unavailable. We are busy restoring them from backup. Please check back in a few days!
  • 101215_153851_MultiCamera0.part01.rar (1.9GB)
    MD5: 028fc8f6771bf9bcdb1ee830daf9f241
  • 101215_153851_MultiCamera0.part02.rar (1.9GB)
    MD5: ced456fcd61023ffccb09d7604fa6d50
  • 101215_153851_MultiCamera0.part03.rar (1.9GB)
    MD5: cfc8cbaec053525cf9f154468011140a
  • 101215_153851_MultiCamera0.part04.rar (1.9GB)
    MD5: ba54b48fe918d210a8eabec2fe49cd59
  • 101215_153851_MultiCamera0.part05.rar (1.9GB)
    MD5: ef0977efe0c53d33c1c48cf1821112c9
  • 101215_153851_MultiCamera0.part06.rar (1.9GB)
    MD5: 9a34a86d1890c4c4f3e934e7cf6ad14b
  • 101215_153851_MultiCamera0.part07.rar (1.9GB)
    MD5: 15a4f72477b61e2e75a3149eb3921b65
  • 101215_153851_MultiCamera0.part08.rar (1.9GB)
    MD5: 2600d208c90dee37a8d015c3e6ffa175
  • 101215_153851_MultiCamera0.part09.rar (1.9GB)
    MD5: ebc740b0df383daca77ac15bf0b315f0
  • 101215_153851_MultiCamera0.part10.rar (1.9GB)
    MD5: ed9f695cda8d23df1c8b6da21ac8ad63
  • 101215_153851_MultiCamera0.part11.rar (1.9GB)
    MD5: 52fc78bcb3f26a649a296d0be770c778
  • 101215_153851_MultiCamera0.part12.rar (1.9GB)
    MD5: d998f45633191230a302608f71f52706
  • 101215_153851_MultiCamera0.part13.rar (1.9GB)
    MD5: b9b6f44b9700342b296bd2dd6f10c3a5
  • 101215_153851_MultiCamera0.part14.rar (1.9GB)
    MD5: de6ee6e0d17196db21c9af00fb2cef63
  • 101215_153851_MultiCamera0.part15.rar (1.9GB)
    MD5: 3b6e87bc5b3259ba71ec1f11cfa5f320
  • 101215_153851_MultiCamera0.part16.rar (1.9GB)
    MD5: fdbd96d76233bf2b367fce84cc9bd318
  • 101215_153851_MultiCamera0.part17.rar (1.9GB)
    MD5: 69db9a58b5782c4ff9c183387c4d98b1
  • 101215_153851_MultiCamera0.part18.rar (1.9GB)
    MD5: 12f1b4042b7e960a0e171f3848d4931f
  • 101215_153851_MultiCamera0.part19.rar (1.3GB)
    MD5: 1177d17493cf78c0f875026c35fd0c54

100 Frame Subset (Frames 1500 to 1600)

Short Section

See full dataset log

See full dataset log

For information on interpreting the log file formats see Log File Format below.

Sensor/Dataset Details

Sensor

Stereo Vision Rig

XSens MTi-G

USB NMEA GPS

Details

  • Cameras: 2x Pt Grey Flea2 firewire cameras
  • Forward facing
  • Baseline: ~750mm
  • Resolution: 1024x768 (both cameras)
  • Fujinon 6mm focal length lenses
  • Image Format: BayerGR8 (both cameras)
  • GPS Based latitude, longitude and altitude
  • IMU/Magnetometer/GPS filtered latitude, longitude and altitude
  • Raw IMU and magnetometer data
  • GPS Based latitude, longitude and altitude

Update Frequency

30 fps (125uS resolution)

120 Hz

1 Hz

Number of Logged Items

33196

132799

1103


Calibration

For ease of transformations, the body co-ordinate system origin is set at the centre of the XSens Mti-g. These locations are accurate to within approximately 10mm. Defined position of GPS antennas is in the centre of the sensor. See the layout image below for clarification.

Sensor

Left Camera

Right Camera

XSens Mti-g

Xsens GPS

NMEA GPS

Position,t (x,y,z) (m)

0.0, 0.379, 0.0

0.0, -0.371, 0.0

0.0, 0.0, 0.0

0.01, 0.1, 0.0

0.01, 0.2, 0.0

Euler rotations (format RxRyRz) (radians)

0.0, 0.0, 0.0

0.0, 0.0, 0.0

0.0, 0.0, 0.0

0.0, 0.0, 0.0

0.0, 0.0, 0.0

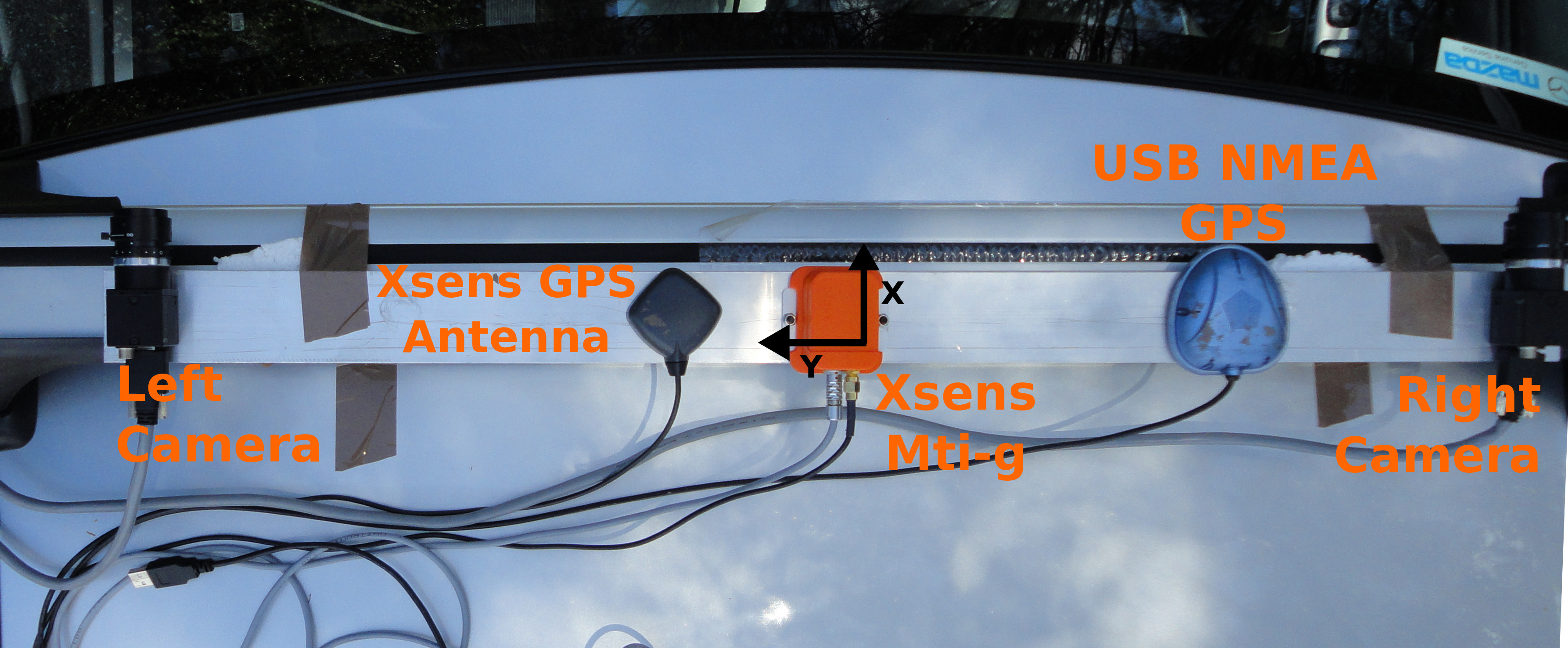

Layout of sensors
Layout of sensors

Monocular and Stereo Camera Calibration

The stereo calibration has been completed using more than 150 checkerboard image pairs taken using the stereo rig while placed on the vehicle. Using our AMCC Toolbox (an extension of the RADDOC Toolbox and Bouget's Camera Calibration Toolbox for Matlab), we have calibrated the stereo pair using the checkboard images given below in Calibration Data.

Intrinsic Calibration Parameters

Camera

Focal Length X,Y (pixels)

Principle Point (x,y) (pixels)

Distortions (K1,K2,P1,P2,K3)

Left

1246.56167, 1247.09234

532.28794, 383.60407

-0.32598, 0.18151, 0.00033, -0.00045, 0.00000

Right

1244.80505, 1245.81569

506.63554, 390.70481

-0.32512, 0.17124, 0.00003, 0.00003, 0.00000

Extrinsic Calibration Parameters

The rotation and translation transform between the stereo pair. Left camera is at the origin. The camera co-ordinate system is defined as follows: X left, Y up, Z forward.

Translation, t (x, y, z, in mm)

Euler rotations (format RxRyRz) (radians)

Rotation matrix

-750.66669, -3.85768, 3.09594

-0.00515, -0.00531, -0.00134

0.999985020769994, 0.001356661749366, -0.005302612991045
-0.001329315763428, 0.999985817981778, 0.005157204176297
0.005309534370930, -0.005150078078314, 0.999972642396056

Calibration Data

The data used to calibrate the stereo dataset is provided here for your convenience if you would like to perform your own calibration. The stereo images containing multiple views of a checkerboard are provided in 101215_151454_MultiCamera0_calibration.rar.
If you would like to use our calibration you can download the monocular and stereo calibration files here that are compatible with Bouget's Camera Calibration for Matlab. If you wish to use OpenCV or our multicamera_data_player app (see below) to undistort the imagery, we have provided convenient XMLs with the data that OpenCV can import directly.

Data Type

Left Camera

Right Camera

Stereo Pair

Images





101215_151454_MultiCamera0_calibration.rar (~527 Mb)

Matlab Calibration Results Files

Calib_Results_left.mat, Calib_Results_left.m

Calib_Results_right.mat, Calib_Results_right.m

Calib_Results_stereo.mat

OpenCV Intrinsics Files

cam0_intrinsics.xml

cam1_intrinsics.xml

OpenCV Distortion Files

cam0_distortion.xml

cam1_distortion.xml


Log File Format

GPS

Data Type

Timestamp (seconds)

Timestamp (millsec)

UTC Time Hours

UTC Time Minutes

UTC Time Second

Latitude (deg)

Longitude (deg)

Altitude (deg)

Horizontal Position Error

Vertical Position Error

Heading

Speed (m/s)

Climb rate (m/s)

Satellites

Observations on L1

Observations on L2

Position Type

Geoidal Seperation

Example

1292391531

313628

0

0

0.000000

-27.492

153.011

42.78900

7.01850

0.00

0.00

0.00

0.00

0

0

0

1

0.00000

INS

Data Type

Timestamp (seconds)

Timestamp (millisec)

Latitude (deg)

Longitude (deg)

Altitude (m)

Height AMSL (m)

Velocity East North Up [vENU] X (m/s)

Velocity East North Up [vENU] Y (m/s)

Velocity East North Up [vENU] Z (m/s)

Roll (rad)

Pitch (rad)

Yaw (rad)

Example

1292391532

94359

-27.492

153.011

43.187

43.187

-0.189

-0.018

0.318

0.014

-0.026

1.282561681

IMU

Data Type

Timestamp (seconds)

Timestamp (milliseconds)

X Acceleration (m/s^2)

Y Acceleration (m/s^2)

Z Acceleration (m/s^2)

Gyro X Velocity (rad/s)

Gyro Y Velocity (rad/s)

Gyro Z Velocity (rad/s)

Example

1292391532

94299

-0.164379

0.129229

-9.68359

-0.00312483

-0.00254386

-0.00429477

MultiCamera

First Line (where columns 2-22 are repeated for each camera):

Data Type

Total Number of Cameras

Cam 0 Expected Image Width (pixels)

Cam 0 Expected Image Height (pixels)

Cam 0 Data format

Cam 0 Frame Rate (Hz)

Cam 0 X offset (m)

Cam 0 Y offset (m)

Cam 0 Z offset (m)

Cam 0 Roll offset (rad)

Cam 0 Pitch offset (rad)

Cam 0 Yaw offset (rad)



Cam 0 Focal Length Fx (pixels)

Cam 0 Focal Length Fy (pixels)

Cam 0 Principle Point cx (pixels)

Example

2

1024

768

GRAY8

30

0

0.379

0

0

0

0

0 0 0

0

0

0

...continued...

Cam 0 Principle Point cy (pixels)

Cam 0 k1

Cam 0 k2

Cam 0 p1

Cam 0 p2

Cam 1 Expected Image Width (pix)

Cam 1 Expected Image Height (pix)

Cam 1 Data format

Cam 1 Frame Rate (Hz)

Cam 1 X offset (m)

Cam 1 Y offset (m)

Cam 1 Z offset (m)

Cam 1 Roll offset (rad)

Cam 1 Pitch offset (rad)

Cam 1 Yaw offset (rad)



Cam 1 Focal Length Fx (pix)

Cam 1 Focal Length Fy (pix)

0

0

0

0

0

1024

768

GRAY8

30

0

-0.371

0

0

0

0

0 0 0

0

0

...continued...

Cam 1 Principle Point cx (pix)

Cam 1 Principle Point cy (pix)

Cam 1 k1

Cam 1 k2

Cam 1 p1

Cam 1 p2

0

0

0

0

0

0

All subsequent lines. Columns 3-5 are repeated for each camera and column 6 is repeated afterwards:

Data Type

Cam 0 Timestamp (seconds)

Cam 0 Timestamp (millisec)

Cam 0 Image Width (pixels)

Cam 0 Image Height (pixels)

Cam 0 Data format

Cam 1 Timestamp (seconds)

Cam 1 Timestamp (millisec)

Cam 1 Image Width (pix)

Cam 1 Image Height (pix)

Cam 1 Data format

Example

1292391532

101549

1024

768

GRAY8

1292391532

101521

1024

768

GRAY8

...continued...

Cam 0 Relative Image Location and Name

Cam 1 Relative Image Location and Name

.//101215_153851_MultiCamera0//cam0_image00001.bmp

.//101215_153851_MultiCamera0//cam1_image00001.bmp


Getting Started

  1. Download the 101215_153851_MultiCamera0_subset_db.rar file. This contains a small subset of processed data from the dataset ('db' = 'debayered'). Extract and examine the imagery to see if it suits your purposes.
  2. Download the 101215_153851_MultiCamera0_subset.rar file. This contains the same small subset as in the full size dataset, but the images are in their raw form. This allows you to experiment with your own image processing and do some experimental evaluation before committing to downloading the whole dataset.
  3. Extract 101215_153851_MultiCamera0_subset.rar using WinRAR on Windows or your favourite package unzipper in Linux. These should uncompress into a single folder titled 101215_153851_MultiCamera0_subset. Keep a note of the path of this folder.
  4. The images provided in the subset and larger whole dataset require some post-processing before they are useful. Firstly, the images are in a bayer format, which means that they appear as a speckled greyscale image. However, colour information is encapsulated within the image encoding, and can be extracted using a software package such as OpenCV. The images also have not yet been undistorted nor rectified. The following steps allow you to debayer, undistort and rectify the images according to your needs with a single executable.
  5. Download MultiCameraDataPlayer (or its source and dependencies, then build the application).
  6. Download the intrinsics and distortion xml files for the data (see Calibration)
  7. Place all four intrinsics and data files in a single folder called intrinsics or something similar. Keep a note of the path of this folder.
  8. Run MultiCameraDataPlayer using the examples provided on it's download page as guidance. For most purposes you will want to debayer and undistort the imagery and export to a video file format for ease of use.
  9. Finished! Now run your visual odometry algorithm on the processed dataset.
When you are satisfied with the quality of the evaluation set, download all 19 .RAR files (see Dataset) containing the images. These are compressed in sizes of just under 2GB to fit browser size limitations. Extract the files as a group using WinRAR on Windows or your favourite package unzipper in Linux. These should uncompress into a single folder titled 101215_153851_MultiCamera0. Keep a note of the path of this folder. Run MultiCameraDataPlayer on the sequence you wish to evaluate and process for use in your visual odometry software

Credits

Dataset Authors

Michael Warren michaelwarren@robotics.utias.utoronto.ca
Ben Upcroft ben.upcroft@qut.edu.au
Michael Shiel michael.shiel@qut.edu.au

Please direct any dataset queries or issues to Michael Warren.
